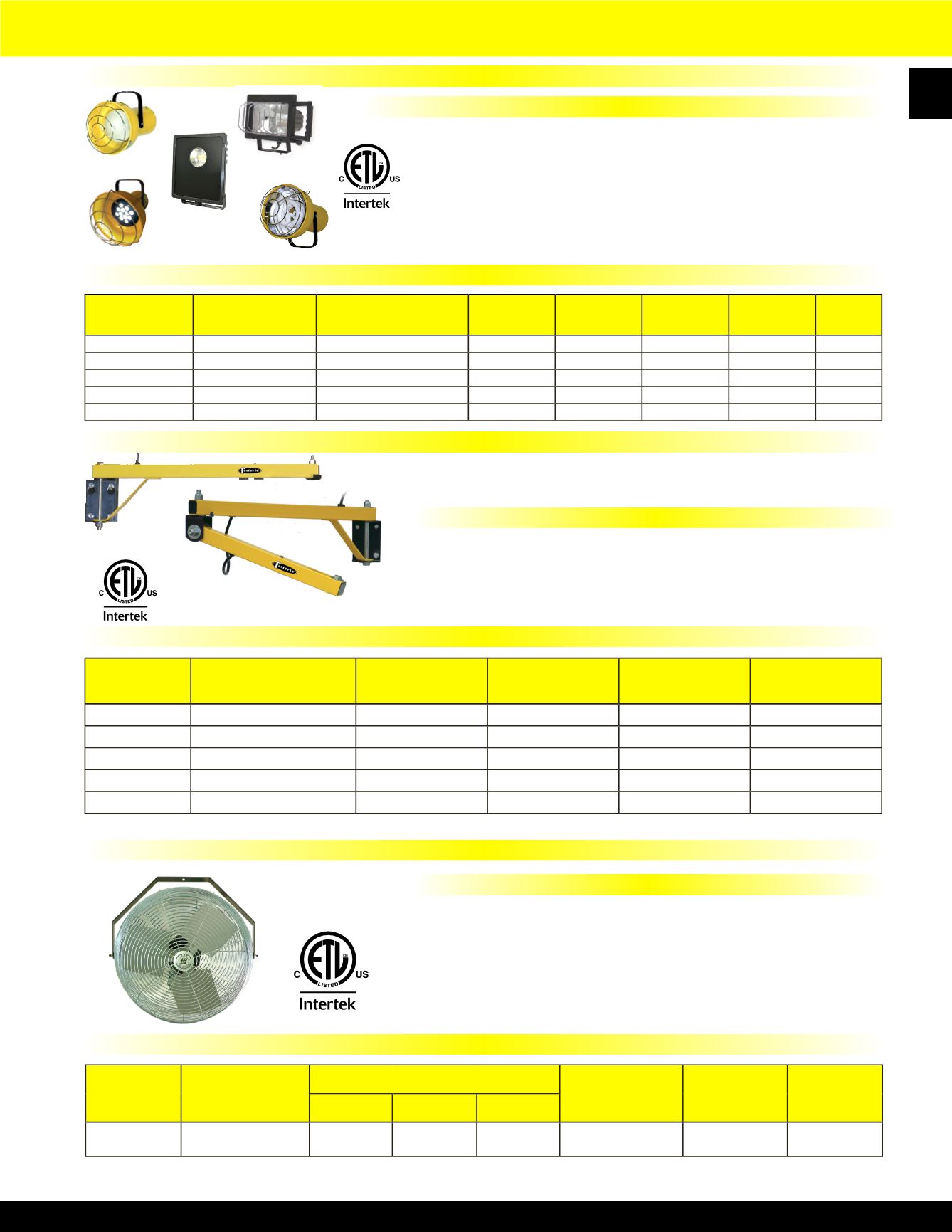

The outer arm on 40” & 60” arms will swing 300° in
horizontal plane & 210° in vertical plane
Features
• 14” long, 18/3 conductor cord plugs into electrical junction box on arm
• On/Off switch & wire guard included with each light head
• Bulb included with all light heads except DKL-INC
• Imported to TPI specifications.
• DKL-LED-37 is compliant with ROHS 2 Directive (2011/65/EU), that of
which includes the application exemptions outlined in Annex III of the
directive.
Mounting Arms
• 1-1/2" square, 11 gauge, steel tubing
• 3" x 5" x 3/16” mounting plate attaches with (4) 3/8" bolts
• 5' long, 18/3 SJTW conductor cord and NEMA 5-15 grounded plug
• Made in U.S.A.
Loading Dock Arm Fan
24” ARM
40” & 60” ARM
Standard Models
Modular Lights
Features
Standard Models
• 18” high velocity circulator, with 3 speed, 1/8 HP, 115V, 1phase
permanently lubricated, totally enclosed, PSC motor
• Modular fan plugs into electrical outlet on arm
• Coated steel guards and aluminum blades.
• Imported to TPI specifications.
Features
**Indicates heavy duty dock arms.
Note: Must be used with LDA (Heavy Duty) mounting arms.
Standard Models
Loading Dock Lights - Modular
DKL-INC
DKL-QH
DKL-LED
DKL-FL
DKL-LED37
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
LIGHT HEAD TYPE
MAX
WATTS
MAX
LUMENS
AVE. BULB
LIFE (HRS)
WT.
(LBS)
LIST
04465602
DKL-INC
Incandescent
300
3,700
2,000
5
80
04465702
DKL-QH
Quartz Halogen
500
11,000
2,000
6
119
04708602
DKL-LED
LED
12
960
50,000
7
273
04881302
DKL-LED-37
LED
37
2,373
>30,000
5
320
04843302
DKL-FL
Fluorescent
55
3,000
10,000
7
185
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
ARM
LENGTH
TOTAL # OF ARMS
WT.
(LBS)
LIST
04465402
DKL-40VA-ARM
40”
2
18
125
04465502
DKL-60VA-ARM
60”
2
24
158
04465302
24-LDA
24”
1
11
98
04466102
40-LDA**
40”
3
18
169
04466202
60-LDA**
60”
3
24
196
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
CFM
AMPS
HIGH
WT.
(LBS)
LIST
HIGH
MED
LOW
07971802
LDF-18-TE
2500
2200
1980
2.2
20
194
