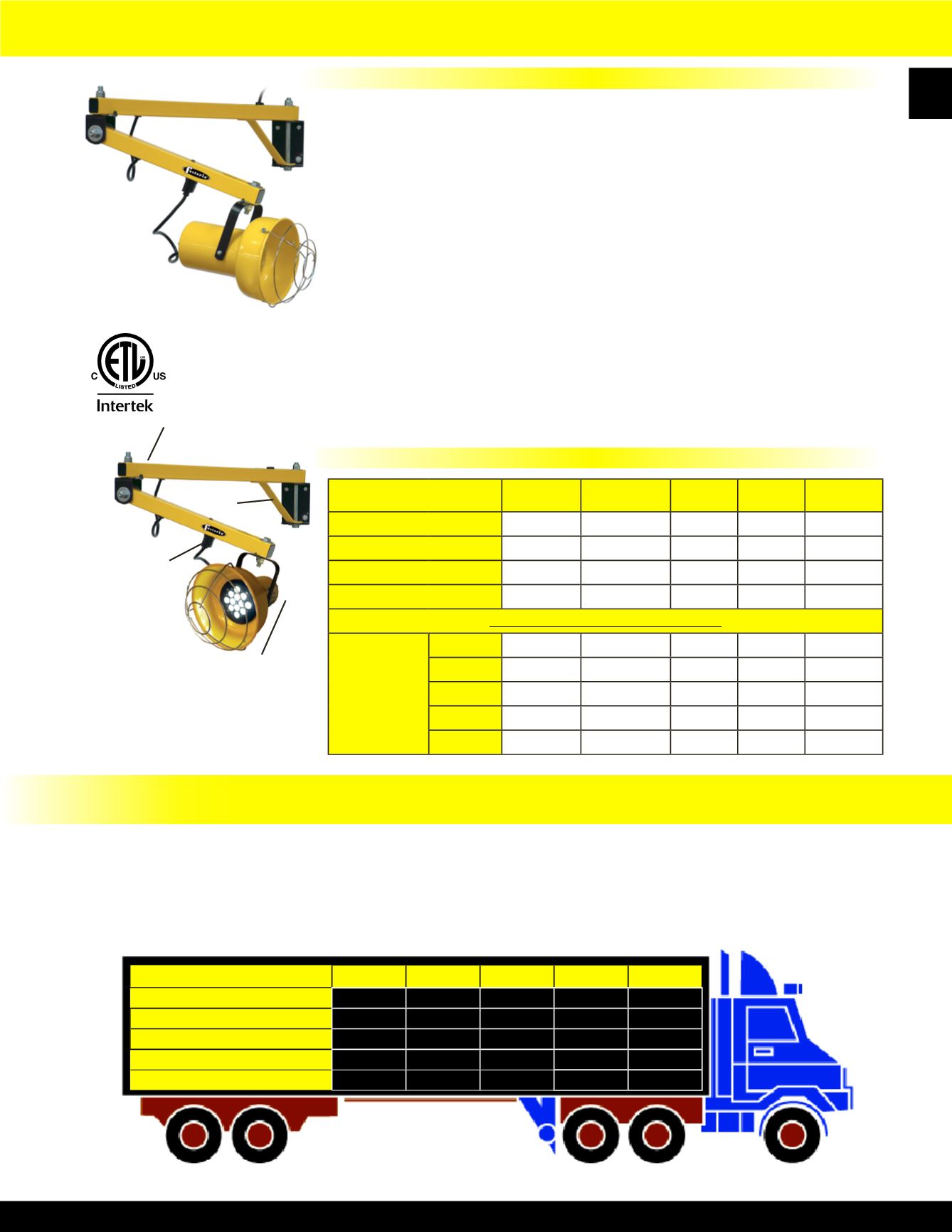

Light Head Features
Light Selection Chart & Illumination Levels
Dock Light Performance Testing
• Chip resistant safety yellow & black powder coating finish for high
visibility and durability
• 5’ long 18/3 SJT, 120V cordset with NEMA 15-5 grounded plug
• On/Off switch & wire guard included on each light head
• 1-1/2” square, 11-gauge, steel tubing
• 3” x 5” x 3/16” mounting plate attached with (4) 3/8” bolts (not
supplied)
• (4) Lighting Sources to select from: incandescent, quartz halogen, LED,
or fluorescent
• (2) Arm Lengths:
40” or 60” (plus 25” flex arm, incandescent only)
• VA models include (2) dock arms with a vertical adjustment bracket
allowing outer arm to adjust from 300° horizontally and 210° vertically
• All light heads will swivel 300°
• Bulbs included with all light heads, except incandescent models
• ETL C/US Listed for indoor applications only, except QH models are
semi-protected outdoor
• Made in U.S.A. with domestic and foreign components
DESCRIPTION
Incandescent Quartz Halogen LED LED 37 Fluorescent
MAX. WATTAGE
300
500
12
37
55
MAX. LUMENS
3,700
11,000
960
2,373
3,000
AVG. BULB LIFE (HRS.)
2,000
2,000
50,000
30,000
10,000
BULB INCLUDED
No
Yes
Yes
Yes
Yes
LIGHT SOURCE ILLUMINATION LEVELS
Measured
Footcandles &
Distance from
Light Source
(inside trailer)
10’ ft.
15
28
121
299
9
20’ ft.
5
14
29
71
3
30’ ft.
3
8
14
34
2
40’ ft.
2
5
4
9
---
50’ ft.
---
3
3
8
---
We measured light levels (in footcandles) inside a 8' x 9' x 53' trailer with a wooden floor and ceiling and white fiberglass walls.
A matrix of nine measurements were taken at five work plains inside the trailer. Averages were figured along the center work
plane of the trailer.
These charts measure the overall quality of truck trailer illumination from a selection of light sources. Many other factors such
as: cost of energy, safety, availability of fixtures, cost of labor and replacement lamps should figure into your final decision.
Light Source and Color Characteristics
10 ft.
20 ft.
30 ft.
40 ft.
50. ft
12W LED (Cool White)
121
29
14
3.7
3.2
37W LED (Cool White)
299
71
34
9
8
500W Quartz Halogen (Bright White)
28
14
8
5.3
3.1
300W Incandescent (Off White)
15
5
3
2.1
----
55W Fluorescent (Bright White)
9
3
2
----
----
Electrical outlet
embedded in the
arm for direct plug
connection from
the shade
On/Off switch & high
temperature
porcelain socket with
a nickel plated
copper screw shell
Dock arm made of 1-1/2”
square steel tubing
Steel mounting bracket
Note: Above measurements are
measured in footcandles
40-LDF-TE
shown with
LED-1 lighthead
