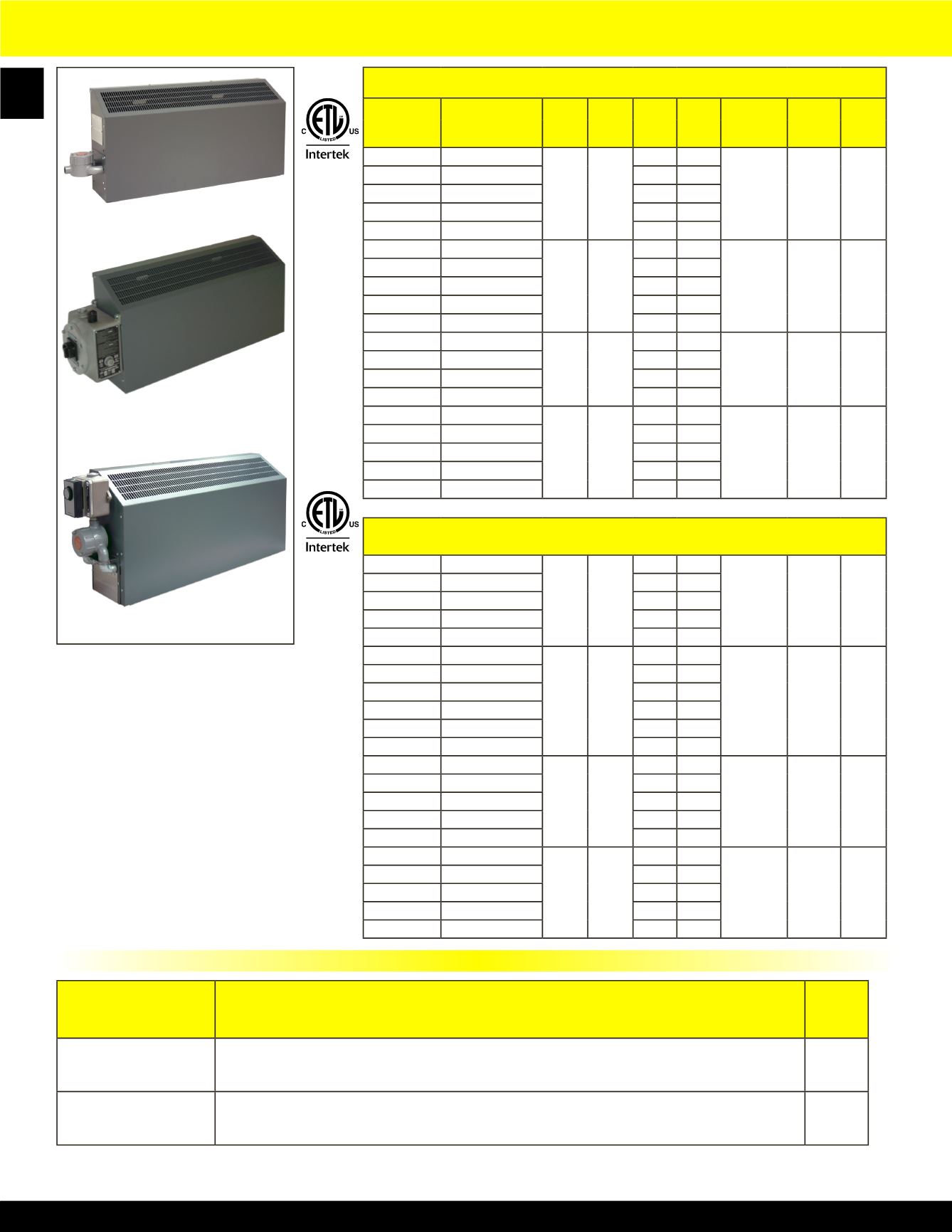

FEP Series Single Phase Hazardous Location Wall Convector
Unit with in-built EPET line voltage thermostat
(Suffix T1 or T2)
Unit with optional control section containing
disconnect, pilot light, and thermostat
(Suffix C1-TDP)
Standard Unit
• Cabinet size 18” high, 9” wide.
• Bottom In - Front Out air flow.
• Wall mounting bracket supplied.
• Units cannot be operated in room
ambients exceeding 104OF (40OC).
• Heavy duty 16 gauge steel with gray
epoxy textured powder coated finish.
• 9” minimum clearance from bottom of
heater to floor required.
• Stainless steel cartridge element inserted
into Aluminum finned Copper sheath.
• Standard unit (without EPET thermostat
or control section) is NEMA 4 rated.
• Made in U.S.A.
Factory Installed Control Options
*Remove - RA suffix and add new suffix. Suffix “T” is 22 Amps maximum.
*Items may not be used with 22 Amp line voltage thermostat
Note: Products listed in this section are custom built and subject to 100% cancellation/restock charges.
T-2A SERIES SINGLE PHASE
Class 1, Group B, C & D Division 1 & 2 280° C / 536° F
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS BTU's VOLTS AMPS
CABINET WT.
(LBS.) LIST
LENGTH
04451402 FEP-1812-1RA
1800 6143
120 15.0
34” 50 1585
04451502 FEP-1820-1RA 208 8.7
04451602 FEP-1824-1RA 240 7.5
04451702 FEP-1827-1RA 277 6.5
04451802 FEP-1848-1RA 480 3.8
04451902 FEP-3620-1RA
3600 12286
208 17.3
34” 54 2418
04452002 FEP-3624-1RA 240 15.0
04452102 FEP-3627-1RA 277 13.0
04452202 FEP-3648-1RA 480 7.5
04452302 FEP-3657-1RA 600 6.0
04452402 FEP-3820-1RA
3800 12969
208 18.3
58” 80 2564
04452502 FEP-3824-1RA 240 15.8
04452602 FEP-38271-RA 277 13.7
04452702 FEP-3848-1RA 480 7.9
04452802* FEP-7620-1RA
7600 25938
208 36.5
58” 85 2983
04452902* FEP-7624-1RA 240 31.7
04453002* FEP-7627-1RA 277 27.4
04453102 FEP-7648-1RA 480 15.8
04453202 FEP-7657-1RA 600 12.7
T-3A SERIES SINGLE PHASE
Class 1, Group B, C & D Division 1 & 2 180° C / 356° F
04453302 FEP-0812-1RA
800 2730
120 6.7
34” 50 1585
04453402 FEP-0820-1RA 208 3.8
04453502 FEP-0824-1RA 240 3.3
04453602 FEP-0827-1RA 277 2.9
04453702 FEP-0848-1RA 480 1.7
04453802 FEP-1612-1RA
1600 5460
120 13.3
34” 54 2418
04453902 FEP-1620-1RA 208 7.7
04454002 FEP-1624-1RA 240 6.7
04454102 FEP-1627-1RA 277 5.8
04454202 FEP-1648-1RA 480 3.3
04454302 FEP-1657-1RA 600 2.7
04454402 FEP-1712-1RA
1700 5802
120 14.2
58” 80 2564
04454502 FEP-1720-1RA 208 8.2
04454602 FEP-1724-1RA 240 7.1
04454702 FEP-1727-1RA 277 6.1
04454802 FEP-1748-1RA 480 3.5
04454902 FEP-3420-1RA
3400 11604
208 16.3
58” 85 2983
04455002 FEP-3424-1RA 240 14.2
04455102 FEP-3427-1RA 277 12.3
04455202 FEP-3448-1RA 480 7.1
04455302 FEP-3457-1RA 600 5.7
SUFFIX* DESCRIPTION LIST
T1 EPETD8S single pole thermostat factory mounted to 120V - 480V units. (50 OF - 90 OF) 626
T2 EPETD8D double pole thermostat factory mounted to 120V - 480V units. (50OF - 90 OF) 648
