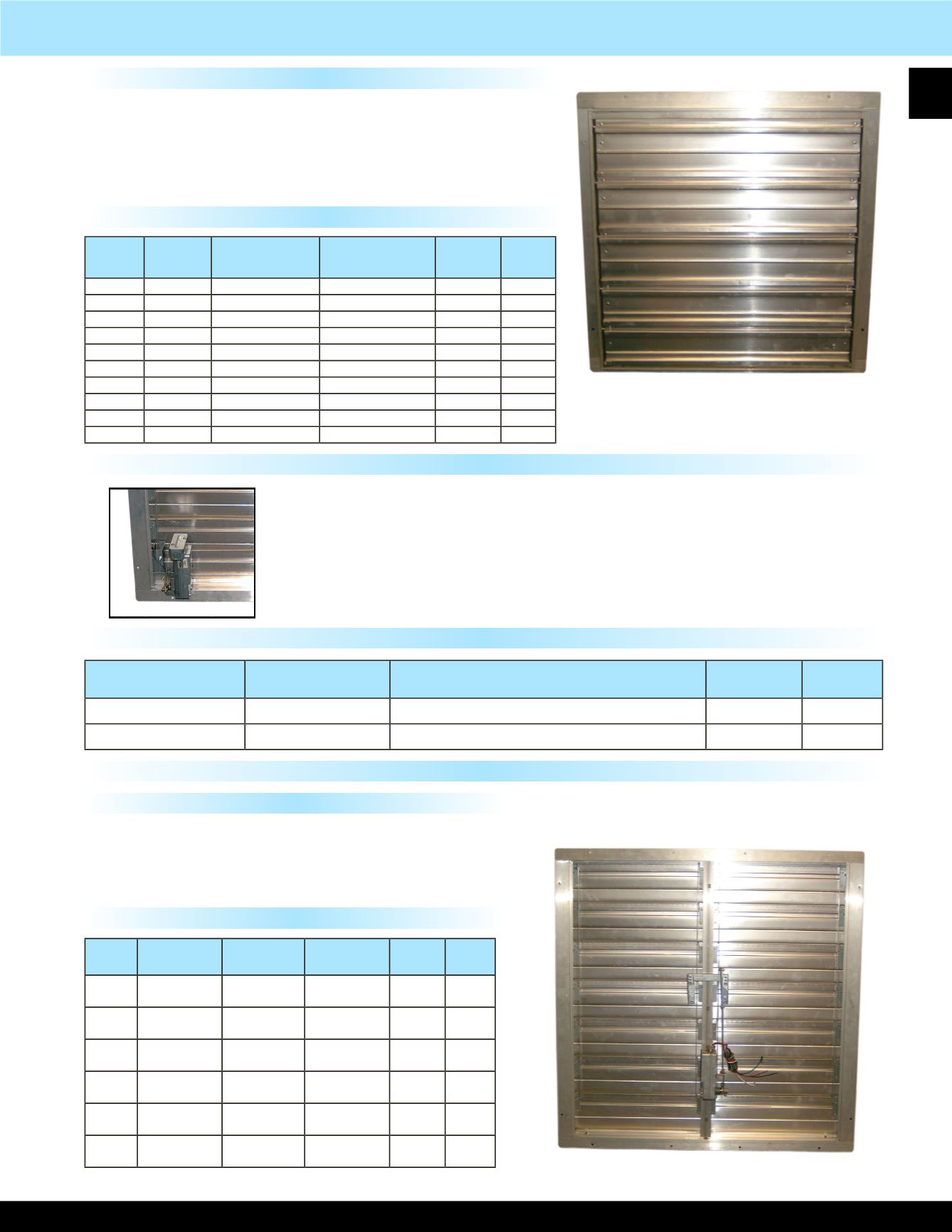

Exhaust Fan Accessories - Heavy Duty Exhaust Shutter
Features
• Air open - Gravity close
• Aluminum construction
• Heavy duty blades
• Weather stripping for tighter seal
• For optimum shutter efficiency, moun shutter 1/3 the distance of the
fan opening size. Example: 36” fan shutter would be mounted 12”
from the fan blade.
Standard Models
Heavy Duty Shutter Motor Kit Features
• Used to open shutter when shutter is used to provide make-up air (Shutter
should be one size larger than exhaust fan size and should be located on
opposite wall)
• Used for positive closure of exhaust shutter
• 115V or 230V, 60 HZ, 1-Phase
Standard Models
Motorized Supply Air Intake Shutter
• Inward opening blades for use with intake fans when
shutter is located directly in air stream
• Galvanized construction
• 115V or 230V, 60 HZ, 1-Phase
Features
Standard Models
FAN SIZE
MFG
MODEL
NUMBER
INSIDE FRAME
DIMENSIONS
OUTSIDE FRAME
DIMENSIONS
WT.
(LBS)
LIST
12”
CES 12
12” x 12”
14” x 15”
4
149
16”
CES 16
16” x 16”
19” x 19”
7
179
18”
CES 18
18” x 18”
21” x 21”
8
205
20”
CES 20
20” x 20”
23” x 23”
9
210
24”
CES 24
24” x 24”
27” x 27”
11
255
30”
CES 30
30” x 30”
33” x 33”
15
313
36”
CES 36
36” x 36”
39” x 39”
19
547
42”
CES 42
42” x 42”
45” x 45”
23
695
48”
CES 48
48” x 48”
51” x 51”
28
801
60”
CES 60
60” x 60”
63” x 63”
47
1112
MFG CATALOG NUMBER MFG MODEL NUMBER
DESCRIPTION
WT.
(LBS)
LIST
07971002
MK-1
For shutter sizes 12” thru 30” (Single Panel)
5
414
07971102
MK-2
For shutter sizes 36” thru 60” (Double Panel)
8
547
FAN
SIZE
MFG MODEL
NUMBER
ROUGH
OPENING
OVERALL
SIZE
WT.
(LBS)
LIST
24”
CESM-24
24” x 24”
27” x 27”
15
1056
30”
CESM-30
30” x 30”
33” x 33”
18
1233
36”
CESM-36
36” x 36”
39” x 39”
21
1348
42”
CESM-42
42” x 42”
45” x 45”
35
2201
48”
CESM-48
48” x 48”
51” x 51”
42
3109
60”
CESM-60
60” x 60”
63” x 63”
56
3666
