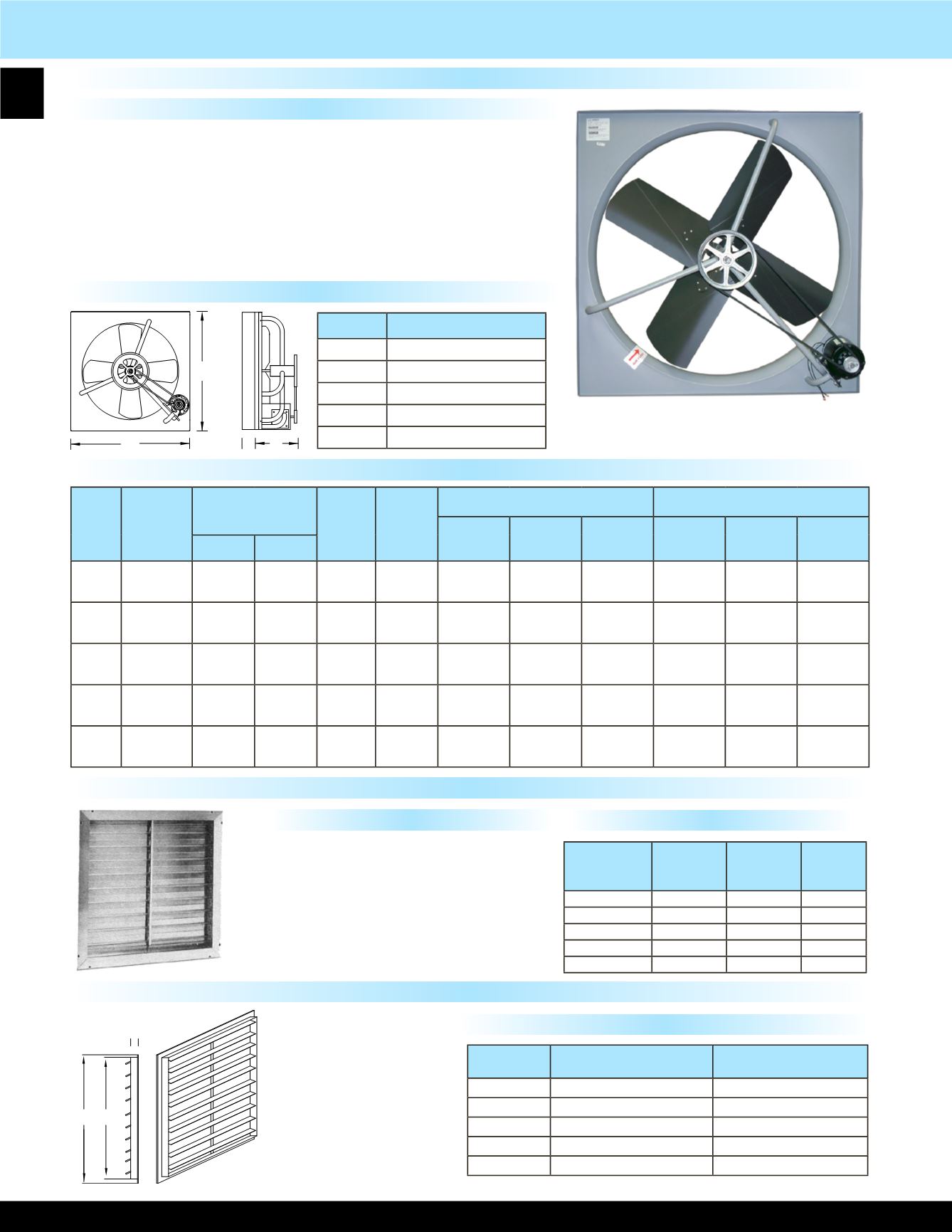

Commercial Exhaust Fans & Shutters
Belt-Drive Exhaust Fan
Features
• 120V, 1 phase or 230 / 460V, 3-Phase, ball bearing, permanently
lubricated, drip proof motor
• Permanently lubricated bearings on blade drive shaft
• Aluminum blade
• Powder coated venturi
• 1725 RPM • Motor frame size 56 • 5/8” shaft
• 1 year warranty
• Made in U.S.A.
Dimensions (Inches)
MODEL DIMENSIONS A x B x C x D
CE-24B 29.5” x 28” x .75” x 17”
CE-30B 35.5” x 34” x .75” x 17”
CE-36B 41.5” x 40” x .75” x 17”
CE-42B 48” x 48” x .75” x 17”
CE-48B 54” x 54” x .75” x 17”
Standard Models
Features
• Air open - gravity close
• Aluminum frame
• Aluminum blade
• Weather stripping for tighter seal
• Made in U.S.A.
Optional Exhaust Shutters
Shutter Dimensions (Inches)
Standard Models
(A) Thickness
(B) Blade Housing Size
(C) Overall Size
MFG MODEL
NUMBER
OUTSIDE FRAME
DIMENSIONS A x C x C
INSIDE FRAME
DIMENSIONS B x B
CES-24
3” x 27” x 27”
24” x 24”
CES-30
3” x 33” x 33”
30” x 30”
CES-36
3” x 39” x 39”
36” x 36”
CES-42
3” x 45” x 45”
42” x 42”
CES-48
3” x 51” x 51”
48” x 48”
Standard Models
* Recommend adding 1/2” to inside frame dimension for wall opening.
SIZE MOTOR HP
AMPS
CFM WT.
(LBS)
115V 1-PHASE
230/460V 3-PHASE
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
LIST
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
LIST
115V 230/460V
24
1/3
5
1.9 / .9 3270
50
07967002 CE-24B
759
08510402 CE-24B-3
873
30
1/3
6
1.9 / .9 7730
60
07967102 CE-30B
855
08510502 CE-30B-3
976
36
1/2
8
2.3 / 1.1 9870
65
07967202 CE-36B
987
08510602 CE-36B-3
1104
42
3/4
11
3.3 / 1.5 11300
75
07967302 CE-42B
1240
08510702 CE-42-B-3
1537
48
1
15
3.8 / 1.9 16500
98
07967402 CE-48B
1549
08510802 CE-48-B-3
1638
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WT.
(LBS)
LIST
07967502
CES-24
11
255
07967602
CES-30
15
313
07967702
CES-36
19
547
07967802
CES-42
23
695
07967902
CES-48
28
801
