HOW TO DESIGNATE AMODEL:
E
91
96
250 ITS
PD
Element Volts
E = 120
F = 208
G = 277
H = 240
Model Series
91
Heater Length
(inches)
28, 36, 48, 60,
72, 84, 96, 108,
or 120
Watts Per Foot
100, 125, 150,
165, 187, 200,
or 250
Control Options
Refer to Pg. 60
Factory Installed
Accessories
PD = Pedestal
DR = Receptacle
WM = Screen
Features

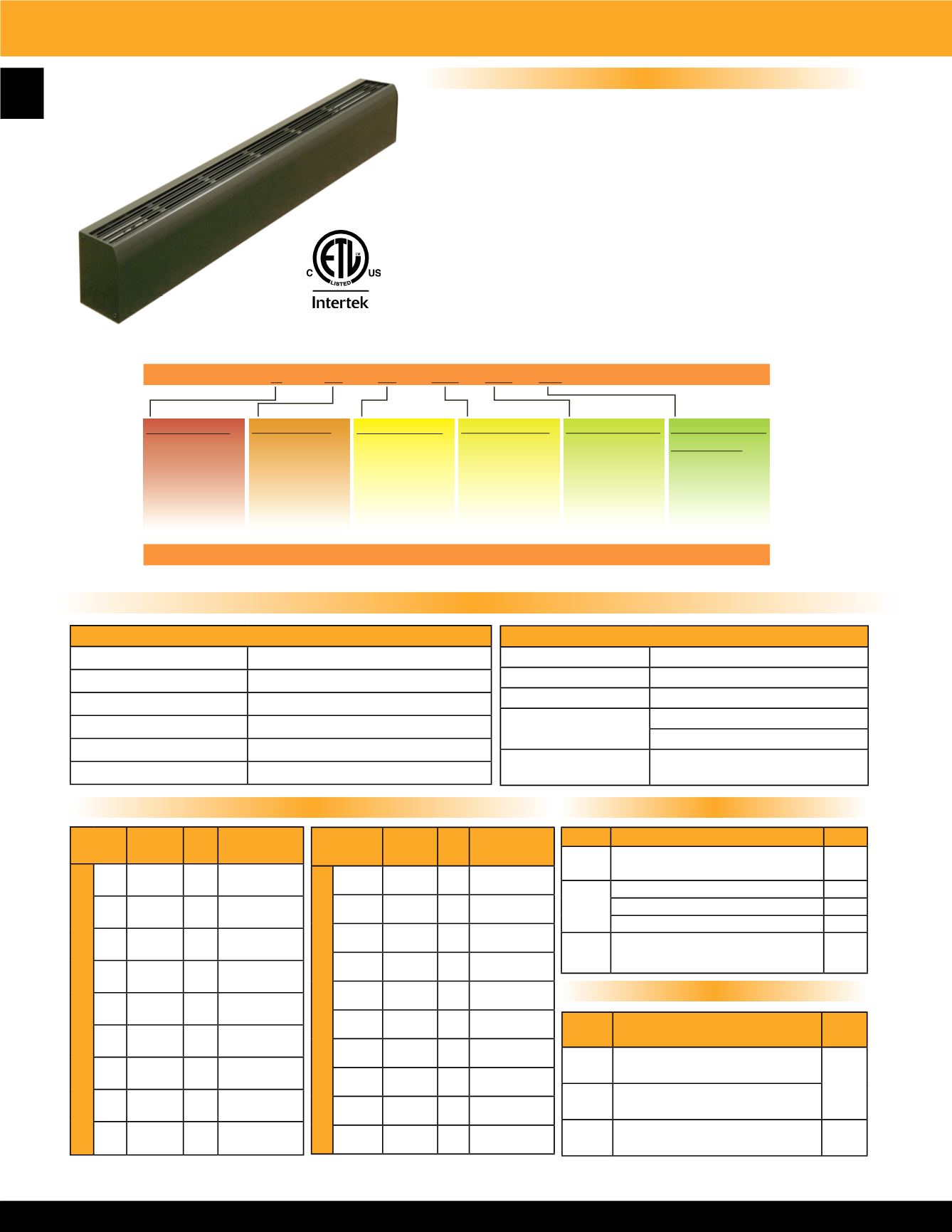

9100 Series - Radius Front Draft Barrier Heater
Product Description
Factory Installed Accessories
Field Installed Accessories
ETL listed up to 250
Watts / foot for industrial,
commercial, or residential
applications.
• Standard color: Bankers Bronze.
• “UNI-LOCK” construction allows snap-fit, 2 piece
installation.
• Units can be controlled by optional In-Built thermostat
or can be constructed with relays and / or transformers
for low voltage or line voltage wall thermostats
• Thermal protection by full length manual reset linear limits
• Optional duplex receptacle section
• Wiring junction boxes on each end of the unit
• Custom colors and finishes available (consult factory)
• Limited by max Amp draw of 25 Amps (with no controls).
• Additional charges may be incurred if changes are made
after production has begun - consult factory.
• Made in U.S.A.
Standard Models
TECHNICAL INFORMATION
Height
4 1/2”
Depth
3 1/8”
Length
28” to 120” in 1’ increments
Cabinet Material Material
Gauge
Aluminum
14
Optional Controls That Can
Be Built Into Unit
Thermostat and Disconnect Switch
(Control Section Required for Relays)
TECHNICAL INFORMATION
Air Intake
Bottom
Air Discharge
Top
Min Mounting Height
3”
Max Watts / Foot
250
Max Allowable Amps
25 Amps (20 Amps with disconnect)
Voltage / Phase
120V/208V/240V/277V Single Phase
Note: All models are suitable for International use
MFG
MODEL
UNIT
LENGTH
LIST FINISHED
BACK ADDER
Heater
9128 28”
317
43
9136 36”
365
50
9148 48”
419
53
9160 60”
488
59
9172 72”
557
63
9184 84”
642
75
9196 96”
701
82
91108 108”
773
95
91120 120”
846
107
SUFFIX
DESCRIPTION
LIST
DR Duplex Receptacle in 4” Extended
Enclosure (not available with 120” heater)
203
PD
28” through 60” - 2 Required
135
72” through 96” - 3 Required
202
108” through 120” - 4 Required
269
WM 1/4” wire mesh under grill
$8.00
Per
foot
MFG
MODEL
DESCRIPTION
LIST
9100IC Inside Corner Section 90° or 135°
195
9100OC Outside Corner Section 90° or 135°
9100EC
Right or Left End Cap
67
MFG
MODEL
UNIT
LENGTH
LIST FINISHED
BACK ADDER
Blank Section
91BS012 12”
89
38
91BS024 24”
120
43
91BS036 36”
154
50
91BS048 48”
186
53
91BS060 60”
218
59
91BS072 72”
253
63
91BS084 84”
307
75
91BS096 96”
317
82
91BS108 108”
350
95
91BS120 120”
382
107
Note: Extended enclosure per foot is 34 dollars.
