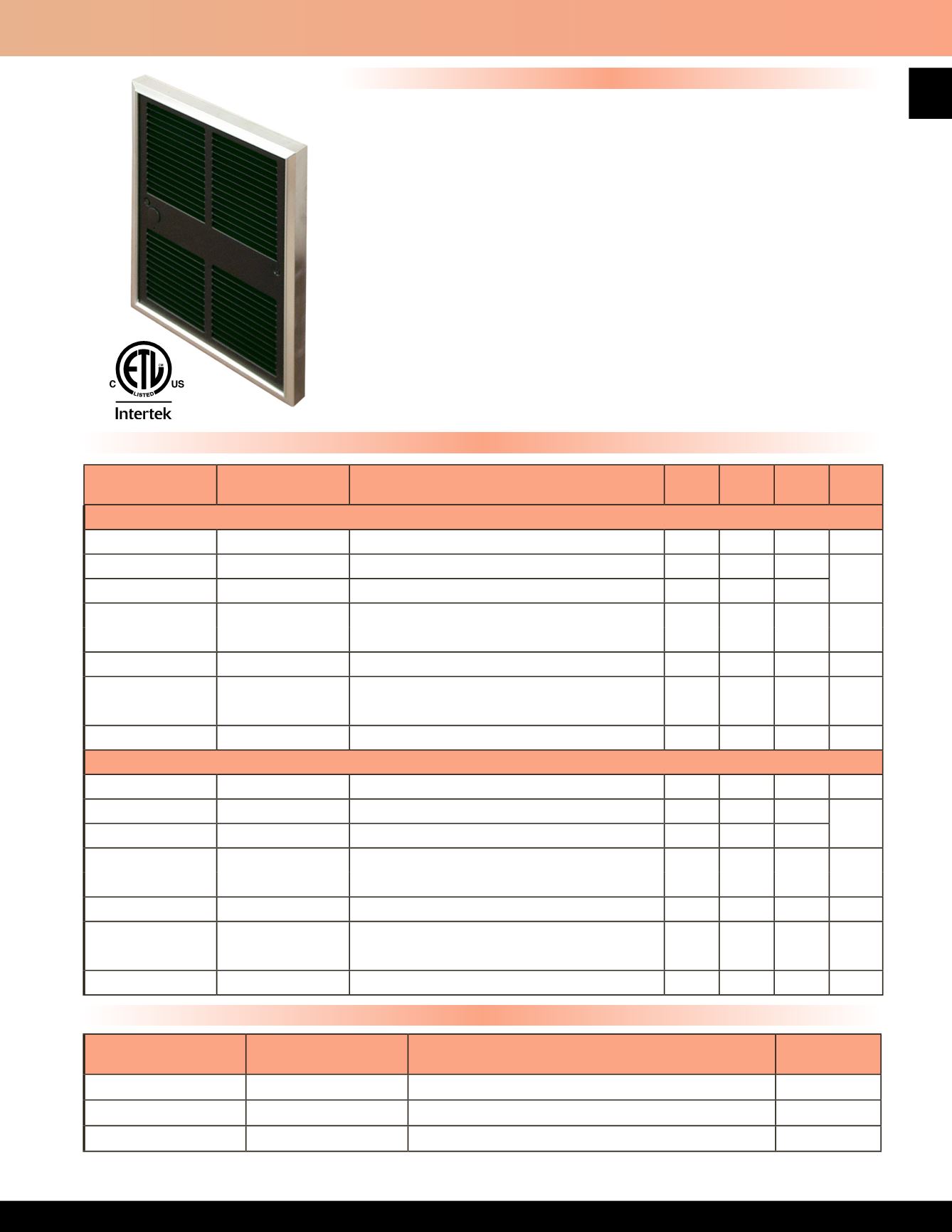

2016 TPI Corporation Electrical Heat & Controls Product Catalog

3000 Series Midsized Commercial Fan Forced Wall Heater - Multiple Wattage

• Wattage selectable at time of installation.

• Models shipped wired to highest wattage.

• Approved for horizontal mounting - right or left discharge.

• Fan purge circuit.

• Disconnect switch.

• Drywall depth embossments on back can.

• 18 gauge powder coated steel & extruded Aluminum front.

• Manual reset thermal limit.

• Steel block fin element.

• Propeller style fan blade: 1060 RPM motor; 100 CFM.

• Weight 6 lbs.

• Rough in dimensions: 9-1/4” Wide x 12-1/8” High x 3-5/8” Deep.

• Grill dimensions: 10” Wide x 13-1/8” High.

• Approved for wall or ceiling installation.

• Made in U.S.A.

Features

Standard Models

Accessories

Note: Please see page 60 for custom color availability - add 10% to net heater cost.

MFG CATALOG

NUMBER

MFG MODEL

NUMBER

SELECTABLE INSTALLATION WATTAGE

MAX

BTU’s VOLTS MAX

AMPS

LIST

TAMPERPROOF IN-BUILT DOUBLE POLE THERMOSTAT (40º - 100º TEMPERATURE RANGE)

09962102

E3055T2DWB

750 or 1500

5120

120

12.5

317

09962202

E3058T2DWB

900 or 1800

6143

120

15.0

315

09962502

F3052T2DWB

1000 or 2000

6826

208

8.3

09456902

F30522T2DWB

500 or 750 or 1000 or 1250

7680

208

10.8

366

or 1500 or 1750 or 2250

09962802

H3052T2DWB

750 or 1000 - 1500 or 2000

6826 208 / 240 8.3

317

09457202

H30522T2DWB

500 or 750 or 1000 or 1250

7680

240

9.4

364

or 1500 or 1750 or 2250

09963102

G3052T2DWB

2000

6826

277

7.2

322

TAMPERPROOF IN-BUILT SINGLE POLE THERMOSTAT (0º - 110º TEMPERATURE RANGE)

09960602

E3055TDWB

750 or 1500

5120

120

12.5

298

09960702

E3058TDWB

900 or 1800

6143

120

15.0

300

09961002

F3052TDWB

1000 or 2000

6826

208

8.3

09456302

F30522TDWB

500 or 750 or 1000 or 1250

7680

208

10.8

346

or 1500 or 1750 or 2250

09961302

H3052TDWB

750 or 1000 - 1500 or 2000

6826 208 / 240 8.3

298

09456602

H30522TDWB

500 or 750 or 1000 or 1250

7680

240

9.4

331

or 1500 or 1750 or 2250

09961602

G3052TDWB

2000

6826

277

7.2

300

MFG CATALOG

NUMBER

MFG MODEL

NUMBER

DESCRIPTION

LIST

09969402

305EX8

1” EXTENDER

09969302

305EX16

2” EXTENDER

09969202

305EX32

4” SURFACE MOUNT FRAME
