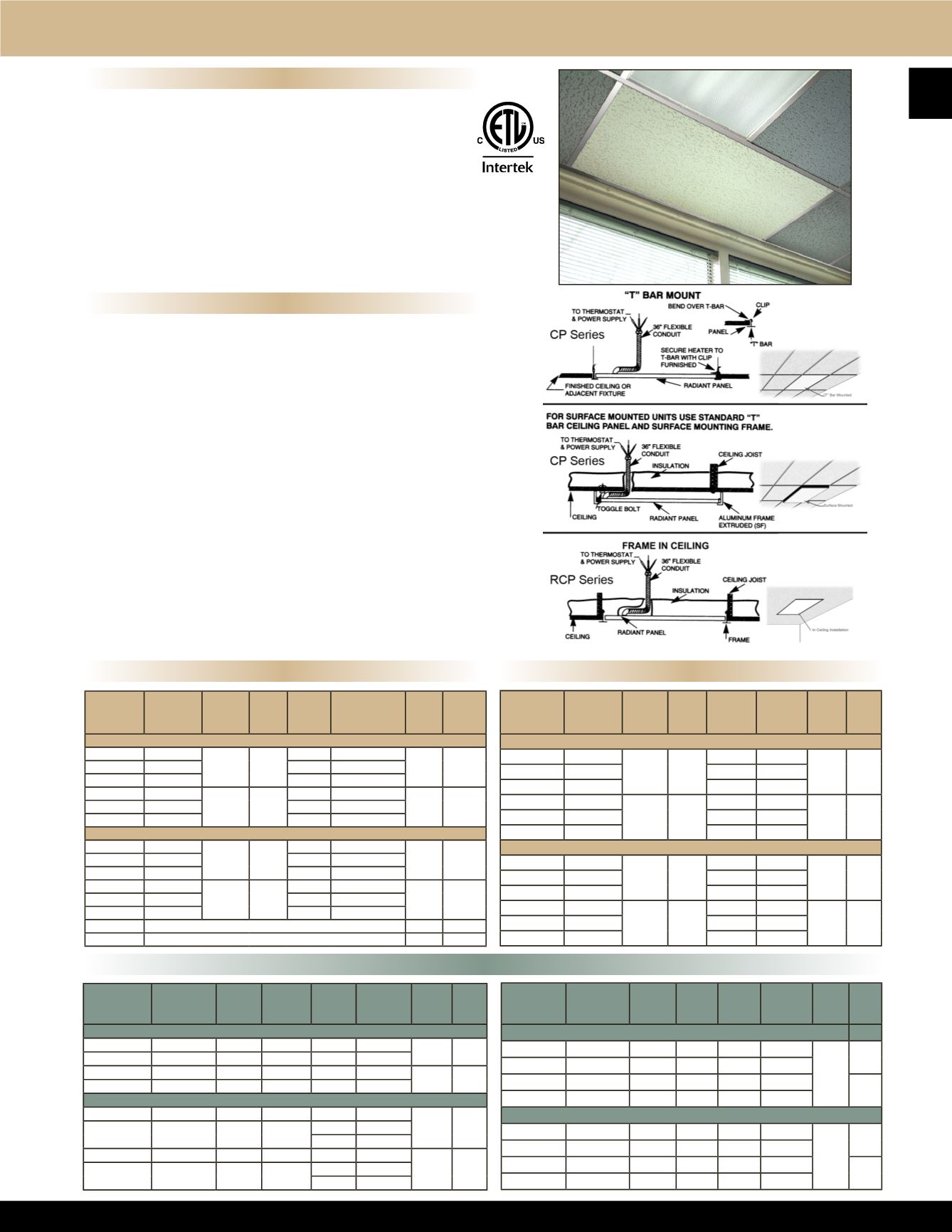

CP & RCP Series Radiant Ceiling Panel Heaters
Product Specifications
Product Description
CP Series - “T” Bar & Surface Mounted
RCP Series - Frame in Ceiling Mounted
CONSTRUCTION:
Radiant Ceiling Panels shall be made of highest quality steel casing.
Front panel shall be painted with textured powder coated finish.
Electric Resistance element is fixed between dielectric material and
insulation. Two inches of insulation is compressed to one inch by back
panel to minimize upward heat loss and radiant efficiency. Radiant
panels shall have 36” pre-wired flexible cable for easy installation and
wiring connections. CP Series is 20 Gauge metal. Made in U.S.A.
INSTALLATION:
CP Series shall be designated as 2x2 or 2x4 size. All panels are 1”
thick. The size shall be nominal dimension to be manufactured to fit
drop ceiling systems. Standard units will fit regular “T” Bar frame.
For regular or trim line or other frame sizes, special construction is
required. RCP Series shall be used in recess mounting applications.
RCP Series shall be 2” less in width to recess between nominal 24”
center ceiling joists. RCP Series shall be complete with recess frame
for finished construction.
ACCESSORIES:
Surface mounting frames shall be optional for surface mounting the CP
Series, and are Aluminum mill finish. Frames can be painted white to
match panel.
OPTIONS:
Silk-screening the exposed surface to match ceiling tiles is available,
as well as silicone sealed metal parts for high humidity applications.
International Models
For Surface Or Recessed Installation, Radiant Ceiling Panels
radiate energy like the solar radiation which warms us, heats
objects, not the air. With no moving parts, these heating
panels create gentle warmth and toasty comfort.
Radiant Ceiling Panels provide a low surface temperature
and broad heat distribution. Clean, gentle comfortable heat
that is ideal for offsetting perimeter heat loss or neutralizing
downdrafts over glass. These versatile and flexible panels
may be used virtually anywhere in homes, schools, hospitals,
motels and a broad variety of other commercial or industrial
installations.
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS BTU's AMPS VOLTS WT.
(LBS)
LIST
Dimensions: 2' x 4' (Nominal) x 1"
04587102 CP805
500 1707
2
208
20 lb.
438
04587202 CP125
4.2/2.1 120/240
04587302 CP705
2
277
04587402 CP807
750 2560
4
208
20 lb.
452
04587502 CP127
6.3/3.1 120/240
04587602 CP707
3
277
Dimensions: 2' x 2' (Nominal) x 1"
04587702 CP802
250 853
1
208
13 lb.
288
04587802 CP122
2.1/1.0 120/240
04587902 CP702
.9
277
04588002 CP803
375 1280
2
208
13 lb.
348
04588102 CP123
3.1/1.6 120/240
04588202 CP703
1
277
04591002 SF400 Surface Frame for 2’ x 4’ Panels (CP only) 10 lb.
194
04590902
SF200 Surface Frame for 2’ x 2’ Panels
6 lb.
157
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS BTU's AMPS VOLTS WT.
(LBS)
LIST
Dimensions: 2' x 4' (Including Recessing Frame)
04588302 RCP805
500 1707
2
208
30 lb.
622
04588402 RCP125
4.2/2.1 120/240
04588502 RCP705
2
277
04588602 RCP807
750 2560
4
208
30 lb.
686
04588702 RCP127
6.3/3.1 120/240
04588802 RCP707
3
277
Dimensions: 2' x 2' (Including Recessing Frame)
04588902 RCP802
250 853
1
208
19 lb.
418
04589002 RCP122
2.1/1.0 120/240
04589102 RCP702
.9
277
04589202 RCP803
375 1280
2
208
19 lb.
524
04589302 RCP123
3.1/1.6 120/240
04589402 RCP703
1
277
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS BTU's AMPS VOLTS WT.
(LBS)
LIST
Dimensions: 2' x 4' (Nominal) x 1"
04710302 CP2205i
420 1434 1.9
220
20
438
04710402 CP125i
500 1707 4.2/4.1 120/240
04710502 CP2207i
630 2150 2.9
220
20
452
04710602 CP127i
750 2560 6.3/3.1 120/240
Dimensions: 2' x 2' (Nominal) x 1"
04710702 CP2202i
210 717 0.95
13
288
04710802 CP122i
250 853 2.1/1.0 120/240
0.9
277
04710902 CP2203i
315 1075 1.4
220
13
348
04711002 CP123i
375 1280 3.1/1.6 120/240
1.4
277
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS BTU's AMPS VOLTS WT.
(LBS)
LIST
Dimensions: 2' x 4' (Including Recessing Frame)
04711102 RCP2205i
420 1434 1.9 220
30
622
04711202 RCP125i
500 1707 4.2/4.1 120/240
04711302 RCP2207i
630 2150 2.9 220
686
04711402 RCP127i
750 2560 6.3/3.1 120/240
Dimensions: 2' x 2' (Including Recessing Frame)
04711502 RCP2202i
210 717 0.95 220
19
418
04711602 RCP122i
250 853 2.1/1.0 120/240
04711702 RCP2203i
315 1075 1.4 220
524
04711802 RCP123i
375 1280 3.1/1.6 120/240
