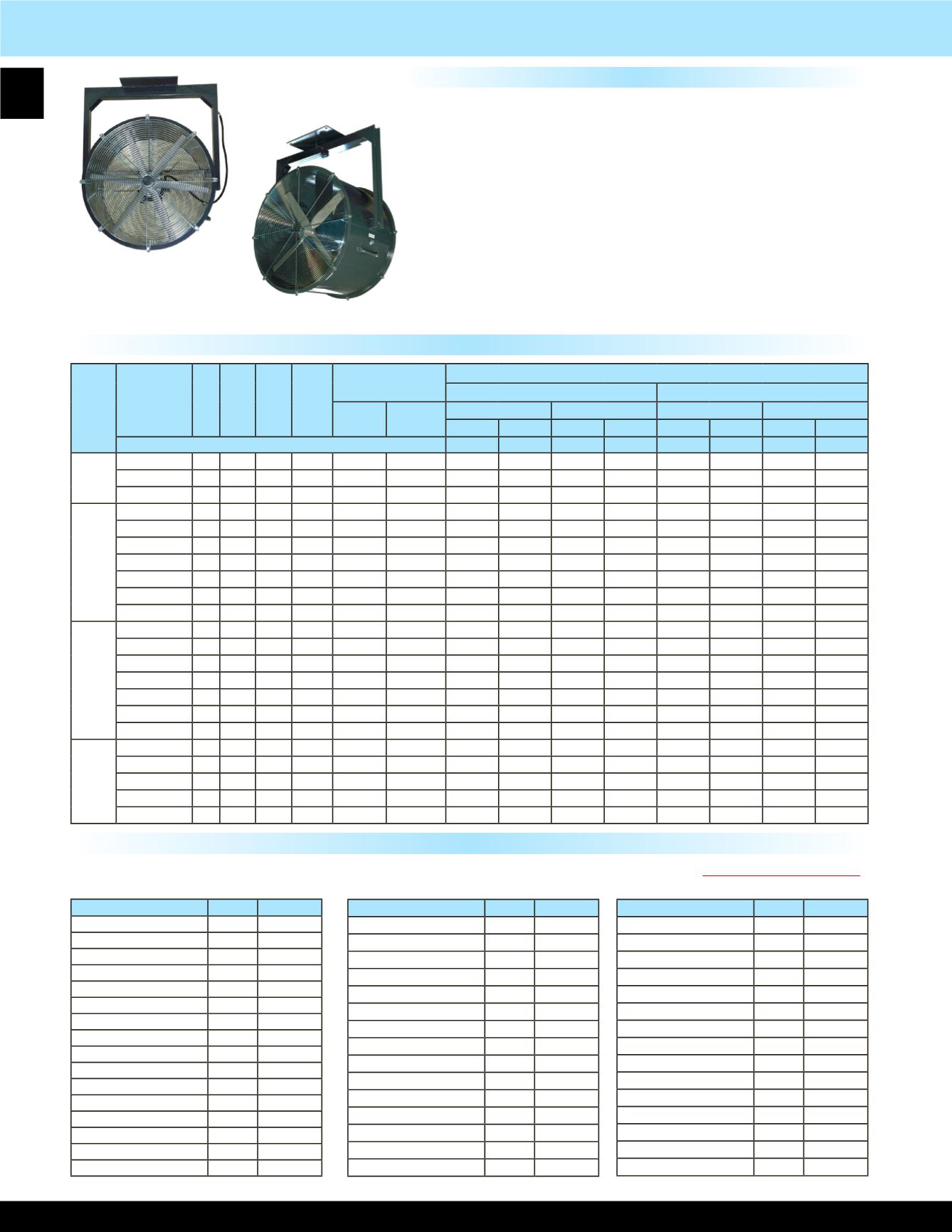

TPI Industrial Heavy Duty Permanent Mount Direct Drive Blowers
Features
• Front and rear spiral guards
• Explosion proof motors are Class 1, Div 1, Group D and
Class 2, Div 1, Groups F & G
• Cast aluminum props
• 14 gauge steel body and stand
• Meets federal OSHA requirements
• 1 year limited warranty
NOTE:
Single Phase motors are field convertible 115V / 230V
Three Phase motors are field convertible 230V / 460V
Motors are set to lower voltage at the factory unless a request is
made at time of order to set to the higher voltage
1-WAY
SWIVEL
2-WAY
SWIVEL
Standard Models
Place
Typical
Range
Assembly
(6)
2-10
Auditoriums
(6)
1-20
Bakeries
(2)
1-3
Banks
(6)
3-10
Bars
(4)
2-5
Barns
(15)
10-20
Boiler Rooms
(2)
1-3
Bowling Alley
(3)
1-5
Cafeteria
(4)
3-5
Churches
(6)
2-10
Classrooms
(6)
4-8
Compressor Rooms
(2)
1-3
Dance Halls
(6)
2-10
Dairies
(4)
2-5
Dormitories
(6)
4-8
Dry Cleaning Plant
(3)
1-5
Place
Typical
Range
Engine Rooms
(3)
1-5
Factories
(7)
4-10
Foundries
(5)
2-8
Garages
(7)
4-10
Generating Plants
(4)
2-5
Glass Plants
(2)
1-3
Gymnasiums
(6)
2-10
Hallways
(8)
4-12
Kitchens (Comm.)
(3)
1-5
Laboratories
(3)
1-5
Libraries
(4)
2-5
Laundries
(2)
1-3
Locker Rooms
(6)
2-10
Machine Shops
(4)
2-5
Markets
(6)
2-10
Place
Typical
Range
Mills
(4)
2-5
Packing Houses
(4)
3-5
Plants
(7)
4-10
Plating Plants
(4)
2-5
Print Shops
(7)
4-10
Restaurants
(6)
2-10
Rest Rooms
(7)
4-10
Schools
(7)
4-10
Stores
(7)
4-10
Theaters
(6)
4-8
Transformer Rooms
(3)
1-5
Turbine Rooms
(4)
2-5
Waiting Rooms
(12)
10-15
Warehouses
(7)
4-10
Welding Rooms
(3)
1-4
Exhaust Ventilation Guide
Minute air change chart for
Commercial and Industrial Applications.
Building Cubic Feet
Minutes Per Air Change
CFM Required for Ventilation =
Note: Products listed in this section are custom built and subject to 100% cancellation/restocking charges.
BLADE
SIZE
MFG
MODEL
NUMBER
HP RPM CFM DB’S
@ 10’
WT. (LBS)
LIST PRICE
1-WAY SWIVEL
2-WAY SWIVEL
1-WAY
SWIVEL
2-WAY
SWIVEL
TEC
EXP
TEC
EXP
1PH 3PH 1PH 3PH 1PH 3PH 1PH 3PH
MODEL NUMBER SUFFIX’S
-T -T-3
-T -T-3
-S
-S-3
-S
-S-3
18”
MCD18-1/4 1/4 1725 3050 74
130
140
3624 3613 4030 4101 4548 4539 4963 5033
MCD18-1/3 1/3 1725 3450 76
135
145
3717 3734 4252 4392 4643 4659 5183 5325
MCD18-1 1 1725 4600 77
145
155
4077 3960 4665 4742 5008 4888 5598 5668
24”
MCD24-1/4 1/4 1725 5200 80
145
155
3734 3717 4135 4217 4708 4689 5103 5183
MCD24-1/3 1/3 1140 5300 74
155
165
4182 4217 5062 5108 5149 5183 6029 6074
MCD24-1/2 1/2 1725 6000 80
150
160
3967 3979 4595 4532 4933 4951 5562 5499
MCD24-3/4 3/4 1140 6900 74
170
180
4805 4444 5325 5201 5773 5411 6290 6173
MCD24-1 1 1725 7400 82
160
170
4222 4106 4812 4881 5190 5074 5779 5848
MCD24-1 1/2 1.5 1725 8200 84
165
175
4403 4259 6068 5155 5375 5225 7035 6123
MCD24-3 3 1725 10500 87
190
200
----
4560
----
5521
----
5527
----
6488
30”
MCD30-1/3 1/3 1140 6900 80
180
190
4532 4566 5411 5457 5604 5638 6477 6529
MCD30-1/2 1/2 1725 8900 86
170
180
4322 4334 4958 4888 5395 5405 6023 5958
MCD30-3/4 3/4 1140 10400 80
240
250
5068 4701 5586 5463 6134 5773 6652 6535
MCD30-1 1 1140 11200 81
230
240
5883 4909 6832 5633 6953 5982 7898 6698
MCD30-1 1/2 1.5 1725 12000 92
230
240
4753 4603 6413 5499 5824 5673 7483 6570
MCD30-2 2 1140 14000 84
255
265
----
5183
----
6214
----
6255
----
7285
MCD30-3 3 1725 16000 94
250
260
----
4828
----
5795
----
5893
----
6860
36”
MCD36-1 1 1140 13000 82
295
305
6756 5779 7700 6494 8083 7105 9027 7826
MCD36-1 1/2 1.5 1725 14850 88
295
305
5586 5440 7252 6336 6919 6768 8578 7664
MCD36-2 2 1140 17500 82
300
310
----
5883
----
6919
----
7217
----
8248
MCD36-3 3 1725 18500 90
315
325
----
5673
----
6635
----
7000
----
7962
MCD36-5 5 1725 23000 94
305
315
----
5743
----
6803
----
7078
----
8130
